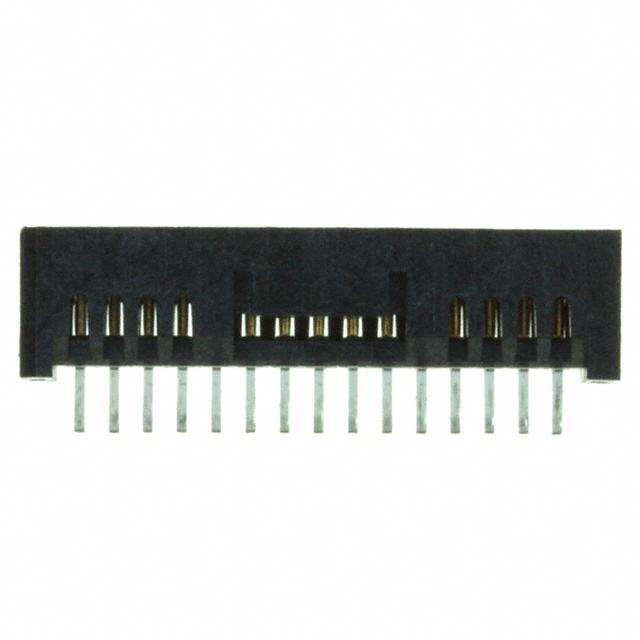

TFML-115-01-S-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFML-115-01-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFML-115-01-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFML-115-01-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .05" 30POS DUAL T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 26 pcs | 104 pcs | 520 pcs | 1014 pcs |
|---|---|---|---|---|---|
| $2.192 | $1.927 | $1.752 | $1.489 | $1.27 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TFML-115-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .05" 30POS DUAL T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26744 pcs | Data sheet | TFM/TFC SMT Footprint, Double RowTFM,TFML Series DatasheetTFML-1yy-yy-yyy-D-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ TFML |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM8262 TFML11501SD |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 30 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.075" (1.91mm) |
| Contact Length - Mating | 0.134" (3.39mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
