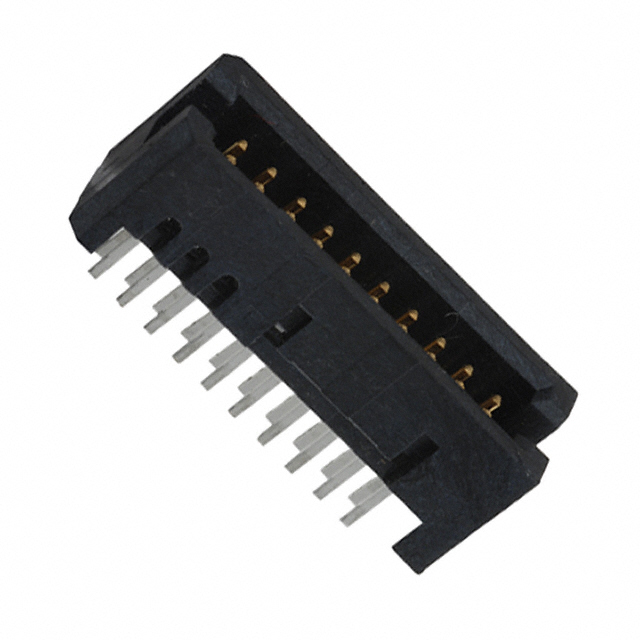

TFML-110-01-S-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFML-110-01-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFML-110-01-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFML-110-01-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .05" 20POS DUAL T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 36 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.722 | $1.516 | $1.378 | $1.171 | $0.999 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TFML-110-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .05" 20POS DUAL T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31213 pcs | Data sheet | TFM/TFC SMT Footprint, Double RowTFM,TFML Series DatasheetTFML-1yy-yy-yyy-D-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ TFML |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM8259 TFML11001SD |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 20 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.075" (1.91mm) | Contact Length - Mating | 0.134" (3.39mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
