TFM-110-01-L-D

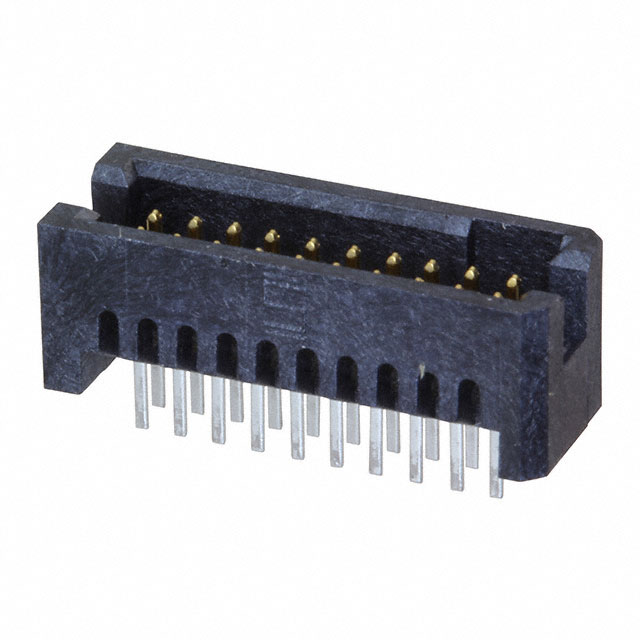

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFM-110-01-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFM-110-01-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFM-110-01-L-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 X .050 MICRO STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 35 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $1.297 | $1.141 | $1.038 | |||
| 525 pcs | 1015 pcs | 5005 pcs | |||
| $0.882 | $0.752 | $0.674 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TFM-110-01-L-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 MICRO STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56407 pcs | Data sheet | TFM,TFML Series DatasheetTFM-1xx-xyx-D-xyx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 275VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ TFM |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM9153 TFM-110-01-L-D-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 20 position 0.050" (1.27mm) | Current Rating | 2.9A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.078" (1.98mm) |
| Contact Length - Mating | 0.131" (3.33mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
