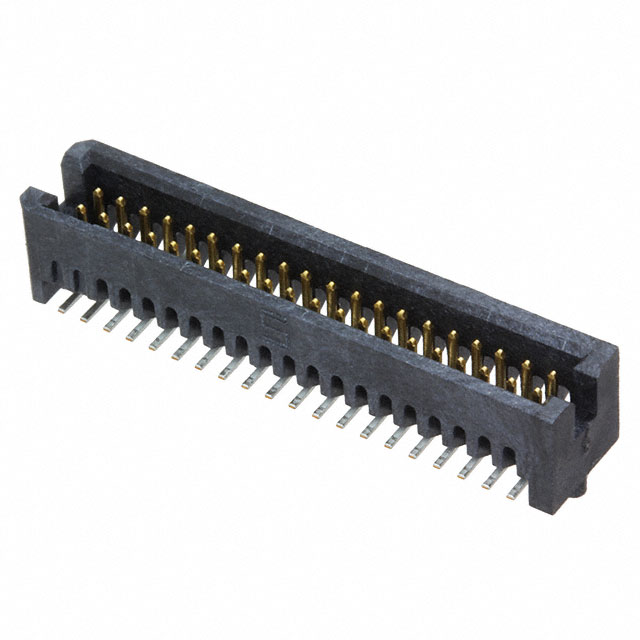

TFC-120-02-L-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFC-120-02-L-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFC-120-02-L-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFC-120-02-L-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 X .050 TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 19 pcs | 114 pcs | 513 pcs | 1007 pcs |
|---|---|---|---|---|---|
| $2.176 | $2.087 | $1.739 | $1.478 | $1.261 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TFC-120-02-L-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29067 pcs | Data sheet | TFC DrawingTFC Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 275VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ TFC |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM10082 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.225" (5.72mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 40 position 0.050" (1.27mm) |
| Current Rating | 3.1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.133" (3.38mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
