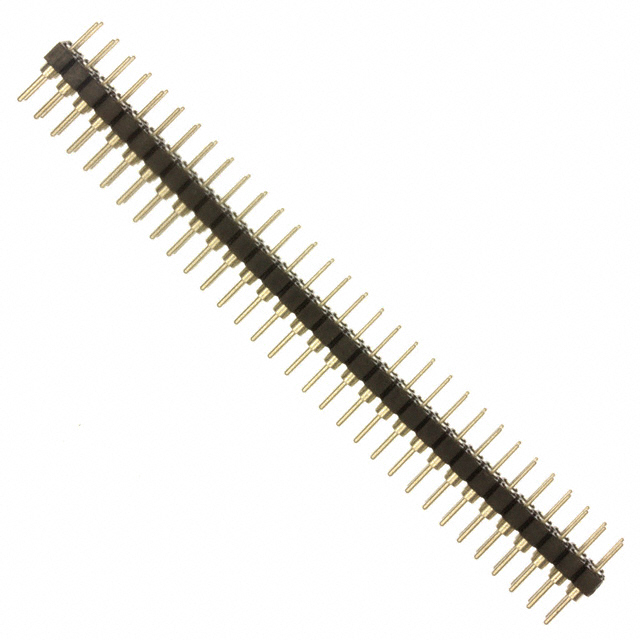

TD-132-T-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TD-132-T-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TD-132-T-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TD-132-T-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .100 64PS DL TIN PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 102 pcs | 504 pcs | 1002 pcs |
|---|---|---|---|---|---|
| $2.778 | $2.486 | $2.047 | $1.618 | $1.389 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TD-132-T-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .100 64PS DL TIN PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26578 pcs | Data sheet | TX-1XX-X-X Drawing 1TX-1XX-X-X Drawing 4TX-1XX-X-X Drawing 2TS, HTS, TD Series DatasheetTD-1xx-x-x Thru Hole FootprintTX-1XX-X-X Drawing 3 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | TD |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.477" (12.12mm) |
| Other Names | SAM1114-32 TD132TA |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 64 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 64 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.156" (3.96mm) | Contact Length - Mating | 0.166" (4.22mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
