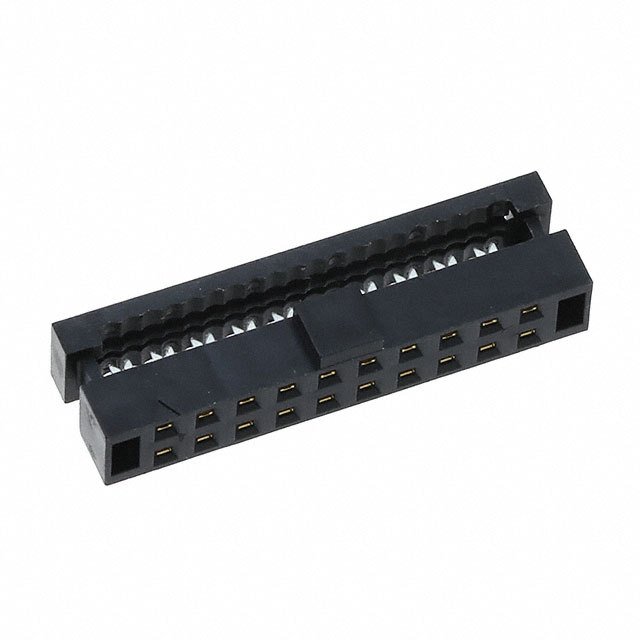

TCSD-10-01-N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCSD-10-01-N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCSD-10-01-N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCSD-10-01-N |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SOCKET 20 POS 2MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 48 pcs | 72 pcs | 120 pcs |
|---|---|---|---|---|---|
| $2.297 | $2.202 | $2.011 | $1.915 | $1.819 | |
| 264 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $1.628 | $1.532 | $1.34 | $1.273 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCSD-10-01-N | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCKET 20 POS 2MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24016 pcs | Data sheet | TCSD Series DatasheetTCSD-x01-x Drawing |
| Category | Connectors, Interconnects | Wire Type | Ribbon Cable |
| Wire Gauge | 28 AWG | Series | Tiger Eye™ TCSD |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | Q3634629 SAM9024 TCSD-10-01-N-ND |
| Number of Rows | 2 | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through, Polarizing Key | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Rectangular Receptacle Connector IDC Gold 28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Termination | IDC |
