TCSD-05-D-02.00-01-F-N

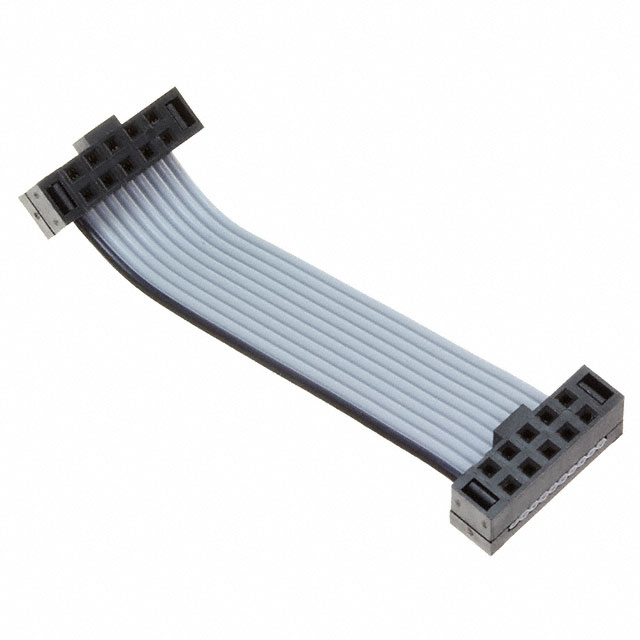

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCSD-05-D-02.00-01-F-N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCSD-05-D-02.00-01-F-N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCSD-05-D-02.00-01-F-N |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM DOUBLE ROW FEMALE IDC ASSEMB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.585 | $2.359 | $2.246 | $2.022 | $1.797 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.629 | $1.516 | $1.432 | $1.376 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCSD-05-D-02.00-01-F-N | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM DOUBLE ROW FEMALE IDC ASSEMB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27314 pcs | Data sheet | TCSD Series DatasheetTCSD-x01-x Drawing |
| Category | Cable Assemblies | Usage | - |
| Shielding | Unshielded | Series | Tiger Eye™ TCSD |
| Pitch - Connector | 0.079" (2.00mm) | Pitch - Cable | 0.039" (1.00mm) |
| Other Names | SAM10749 TCSD-05-D-02.00-01-F-N-ND |
Number of Rows | 2 |
| Number of Positions | 10 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length | 0.167' (50.80mm, 2.00") | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Polarizing Key | Detailed Description | 10 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00") |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Socket to Socket | Color | Gray, Ribbon |
| Cable Termination | IDC |
