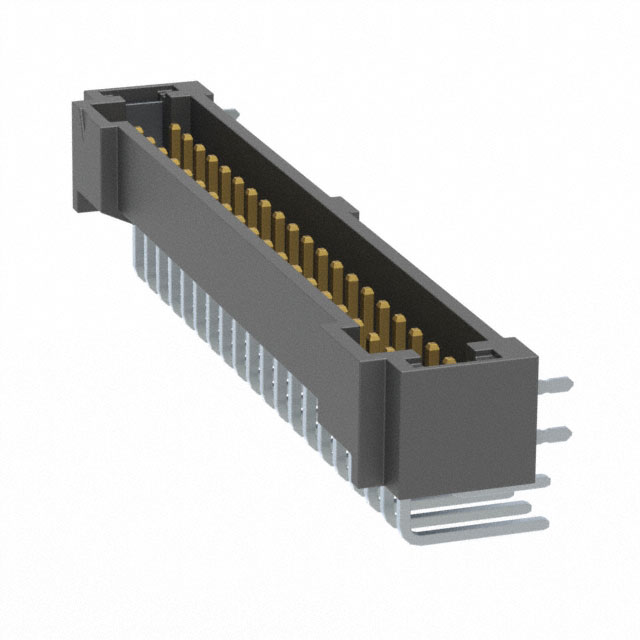

T2M-120-01-L-D-RA-WT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T2M-120-01-L-D-RA-WT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T2M-120-01-L-D-RA-WT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T2M-120-01-L-D-RA-WT |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | T2M 2MM SHROUDED TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.958 | $2.834 | $2.341 | $1.971 | $1.725 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | T2M-120-01-L-D-RA-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | T2M 2MM SHROUDED TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20491 pcs | Data sheet | T2M-1yy-yy-y-D-yy-yy DrawingT2M Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ T2M |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM10063 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.293" (7.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm) |
| Current Rating | 3.8A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
