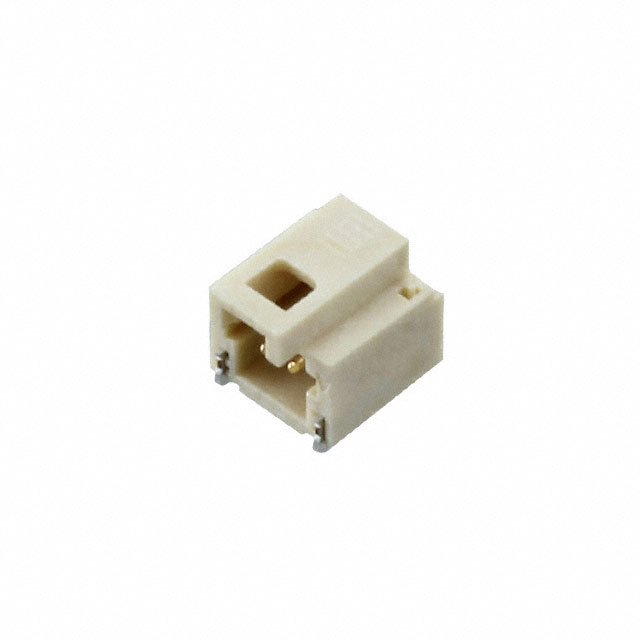

T1M-02-F-SH-L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T1M-02-F-SH-L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T1M-02-F-SH-L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T1M-02-F-SH-L |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | T1M 1MM TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.89 | $0.807 | $0.758 | $0.725 | $0.692 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.626 | $0.576 | $0.494 | $0.461 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | T1M-02-F-SH-L | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | T1M 1MM TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78380 pcs | Data sheet | T1M, ISS1 Series DatasheetT1M, Single Row-Horizontal w/Latch Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | T1M |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Strip | Overall Contact Length | - |
| Other Names | SAM11989 T1M-02-F-SH-L-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.039" (1.00mm) |
| Current Rating | 3.3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
