STMM-105-02-T-D

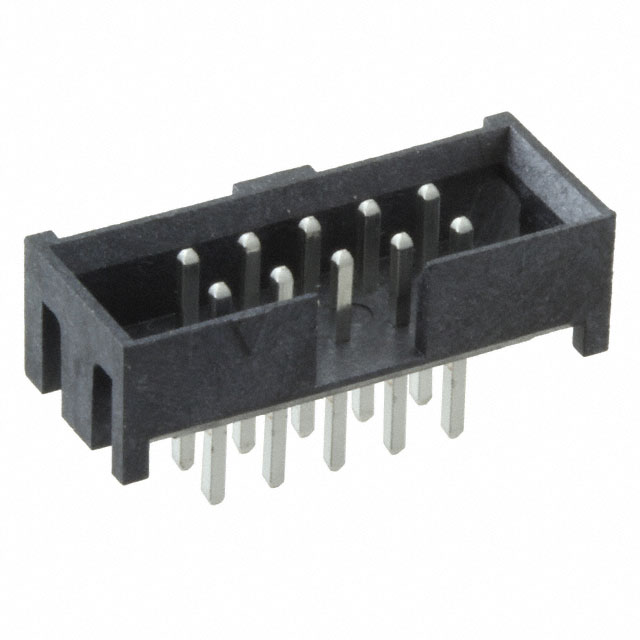

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STMM-105-02-T-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STMM-105-02-T-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STMM-105-02-T-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEAD 2MM 10POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 35 pcs | 105 pcs | 525 pcs | |
|---|---|---|---|---|---|
| $0.705 | $0.601 | $0.549 | $0.458 | ||
| 1015 pcs | 5005 pcs | 10010 pcs | |||
| $0.392 | $0.348 | $0.34 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | STMM-105-02-T-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEAD 2MM 10POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68345 pcs | Data sheet | STMM, ZSTMM Series DatasheetSTMM Through Hole FootprintSTMM-1yy-yy-yy-D-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, STMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.302" (7.67mm) |
| Other Names | Q5884787 SAM10748 STMM-105-02-T-D-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.190" (4.83mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
