SSW-150-02-S-D

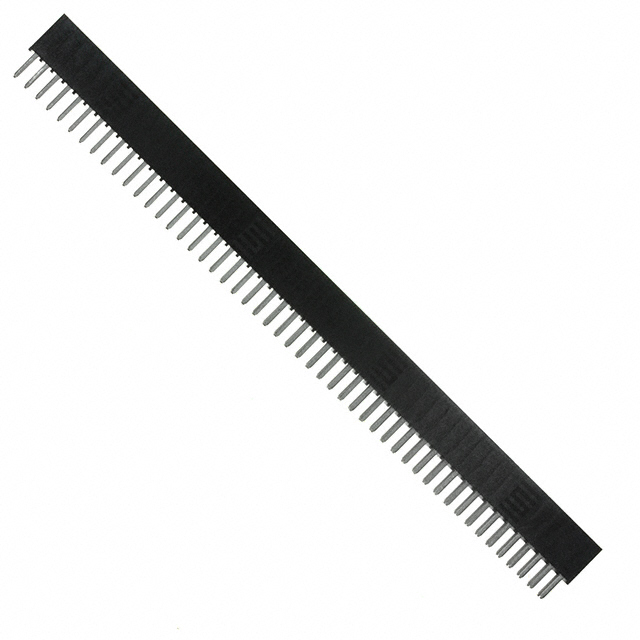

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSW-150-02-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSW-150-02-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSW-150-02-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 100POS DUAL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.448 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSW-150-02-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 100POS DUAL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8619 pcs | Data sheet | SSW Series Drawing(Thru Hole)SSW, SSQ Datasheet - Thru HoleSSW Double Row Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSW | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM1217-50 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 100 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 5.7A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.194" (4.93mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
