SSW-146-01-T-D

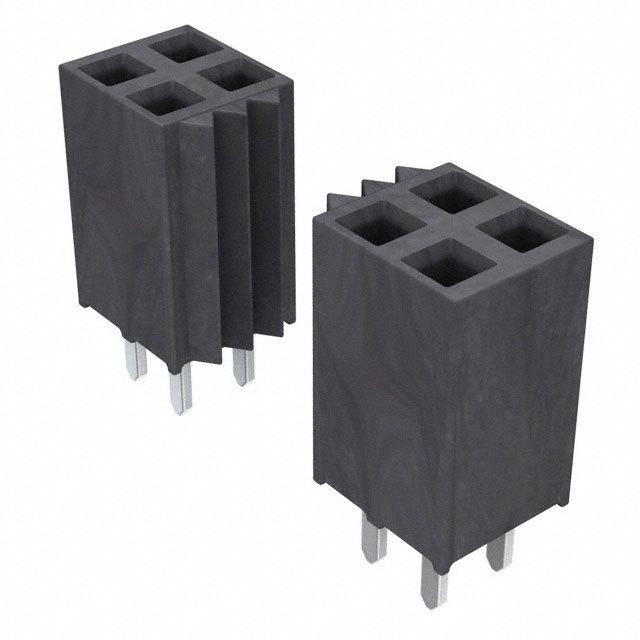

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSW-146-01-T-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSW-146-01-T-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSW-146-01-T-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 92POS DUAL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.507 | $2.242 | $1.847 | $1.46 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.253 | $1.143 | $1.099 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSW-146-01-T-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 92POS DUAL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32274 pcs | Data sheet | SSW Series Drawing(Thru Hole)SSW, SSQ Datasheet - Thru HoleSSW Double Row Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSW | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM1212-46 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 92 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 92 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | 5.7A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.104" (2.64mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
