SSW-107-22-F-D-VS

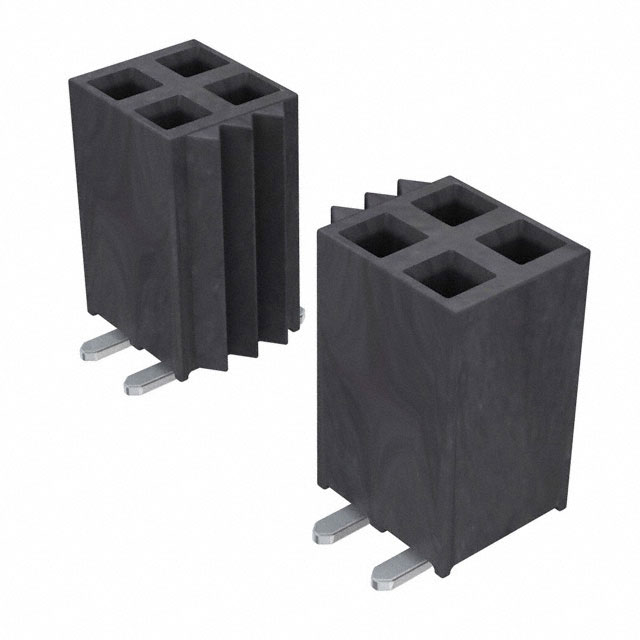

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSW-107-22-F-D-VS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSW-107-22-F-D-VS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSW-107-22-F-D-VS |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 14POS DUAL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.91 | $0.754 | $0.566 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.471 | $0.418 | $0.393 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSW-107-22-F-D-VS | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 14POS DUAL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76763 pcs | Data sheet | SSW Double Row, SMT FootprintSSW Series Datasheet SMTSSW-1yy-22-yyy-y-VS Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSW | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM12907 SSW-107-22-F-D-VS-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 14 Position Receptacle Connector Surface Mount | Current Rating | 5.7A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
