SSQ-111-02-G-D

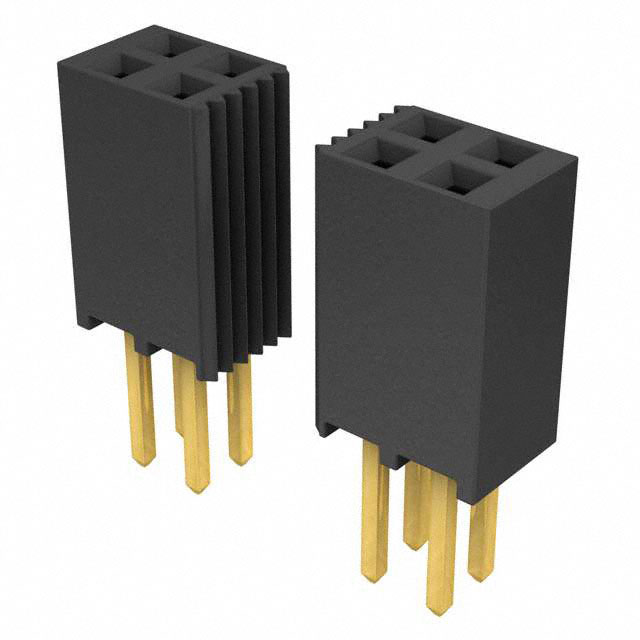

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSQ-111-02-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSQ-111-02-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSQ-111-02-G-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 22POS DUAL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.964 | $1.756 | $1.446 | $1.143 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.981 | $0.895 | $0.861 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSQ-111-02-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 22POS DUAL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44252 pcs | Data sheet | SSQ Through Hole FootprintSSW, SSQ Datasheet - Thru HoleSSQ Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 550VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSQ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM1185-11 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 22 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 6.3A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.194" (4.93mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
