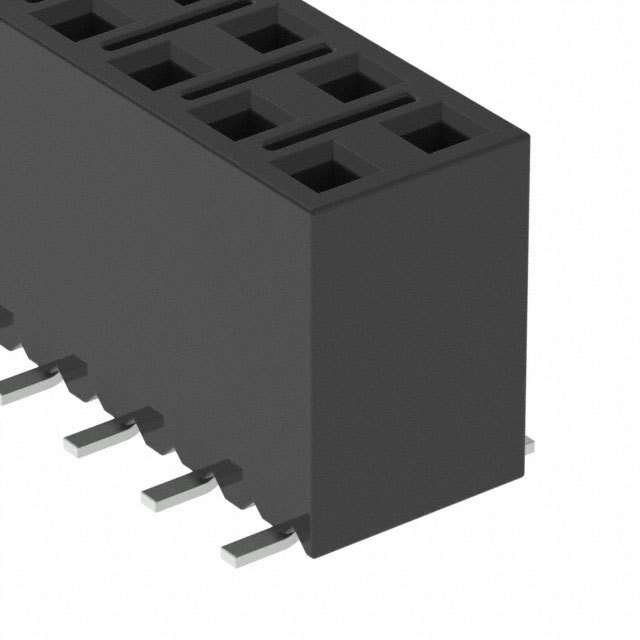

SSM-105-F-DV-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-105-F-DV-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-105-F-DV-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM-105-F-DV-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 10POS DUAL VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.874 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM-105-F-DV-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 10POS DUAL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36033 pcs | Data sheet | SSM (Double Vertical) FootprintSSM Series DatasheetSSM-1yy-yyy-DV-yy-yy-yyy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSM | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.290" (7.37mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle, Pass Through Connector Surface Mount | Current Rating | 5.2A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Pass Through | Applications | - |
