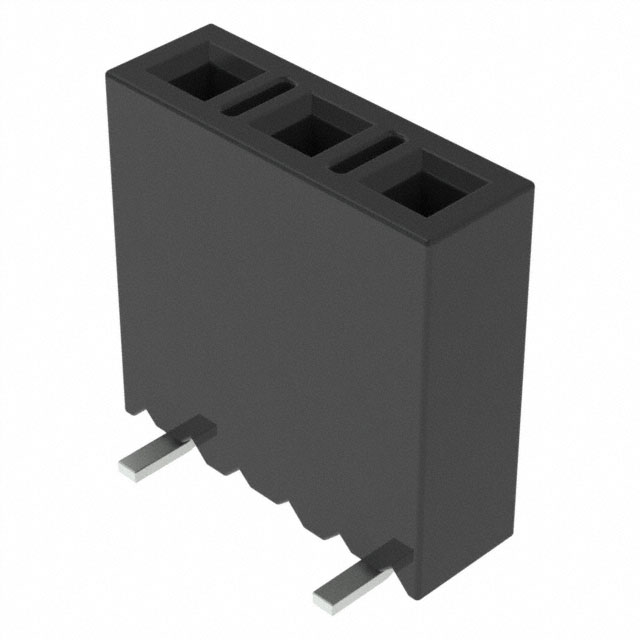

SSM-103-L-SV-K-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-103-L-SV-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-103-L-SV-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM-103-L-SV-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 3POS SNGL VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 375 pcs | 750 pcs | 1125 pcs | ||
|---|---|---|---|---|---|
| $0.328 | $0.276 | $0.262 | |||
| 1875 pcs | 2625 pcs | 9375 pcs | |||
| $0.257 | $0.252 | $0.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM-103-L-SV-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 3POS SNGL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99802 pcs | Data sheet | SSM Series DrawingSSM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSM | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | SAM14586TR SSM-103-L-SV-K-TR-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle, Pass Through Connector Surface Mount |
| Current Rating | 5.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Pass Through |
| Applications | - |
