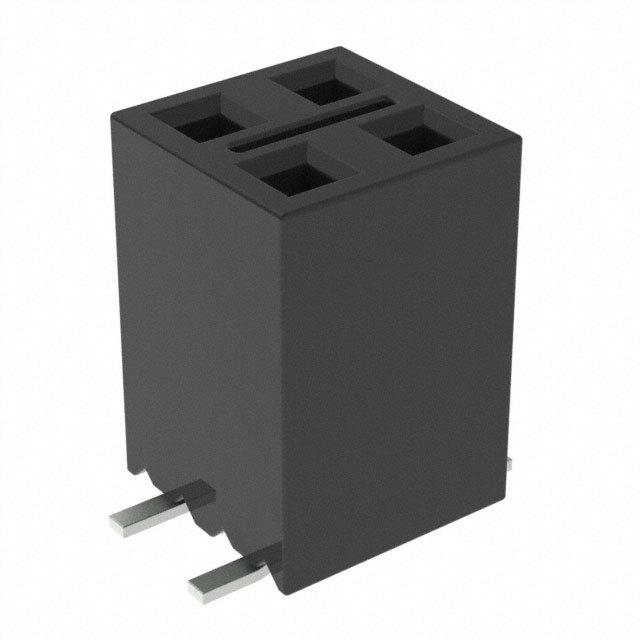

SSM-102-L-DV-K-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-102-L-DV-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-102-L-DV-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM-102-L-DV-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 4POS DUAL VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 475 pcs | 950 pcs | 1425 pcs | 2375 pcs | 3325 pcs |
|---|---|---|---|---|---|
| $0.432 | $0.365 | $0.346 | $0.339 | $0.332 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM-102-L-DV-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 4POS DUAL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62338 pcs | Data sheet | SSM (Double Vertical) FootprintSSM Series DatasheetSSM-1yy-yyy-DV-yy-yy-yyy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSM | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | SAM14581TR SSM-102-L-DV-K-TR-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle, Pass Through Connector Surface Mount |
| Current Rating | 5.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Pass Through |
| Applications | - |
