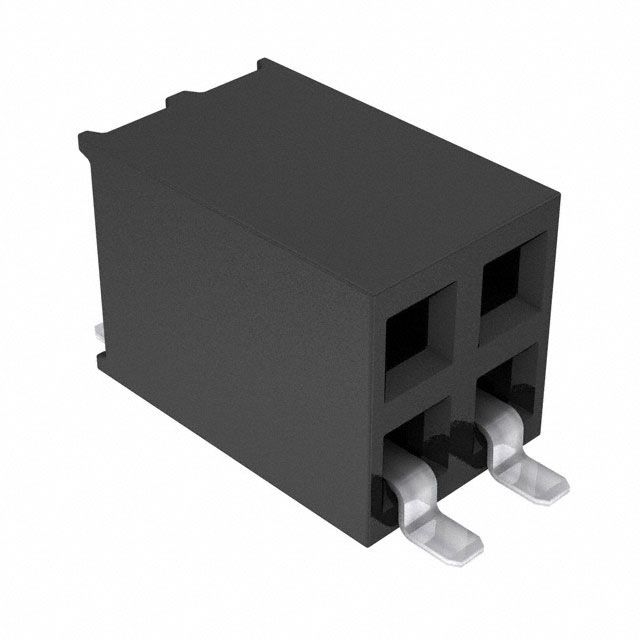

SSM-102-L-DH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-102-L-DH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-102-L-DH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM-102-L-DH |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 4POS DUAL HORZ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM-102-L-DH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 4POS DUAL HORZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5663 pcs | Data sheet | SSM Series DrawingSSM Series DatasheetSSM Double Row, Horizontal Footprint |
| Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSM | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | SAM1145-02 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.225" (5.72mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
| Current Rating | 5.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
