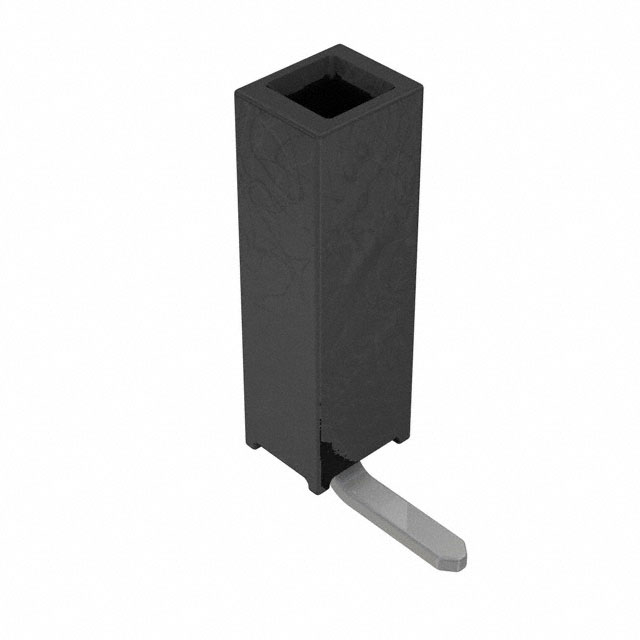

SSM-101-S-SV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-101-S-SV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-101-S-SV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM-101-S-SV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 1POS SNGL VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.105 | $0.987 | $0.813 | $0.643 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.552 | $0.503 | $0.484 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM-101-S-SV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 1POS SNGL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62014 pcs | Data sheet | SSM Series DrawingSSM Series DatasheetSSM (Single Vertical) Footprint |
| Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SSM | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Other Names | SAM1152-01 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.290" (7.37mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 1 Position Receptacle, Pass Through Connector Surface Mount | Current Rating | 5.2A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Pass Through | Applications | - |
