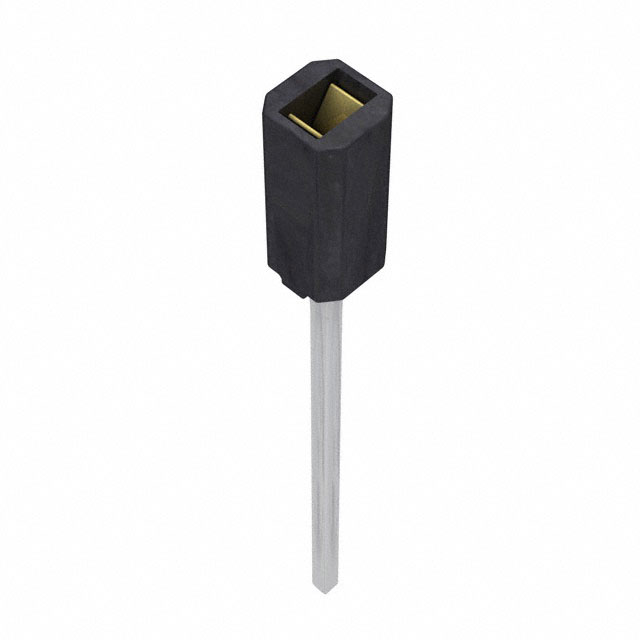

SSA-101-W-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSA-101-W-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSA-101-W-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSA-101-W-G |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 1POS GOLD WW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.562 | $0.503 | $0.414 | $0.327 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.281 | $0.256 | $0.246 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSA-101-W-G | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 1POS GOLD WW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94076 pcs | Data sheet | SSA-1xx-W-x-xx DrawingSSA Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Wire Wrap | Style | Board to Board |
| Series | SSA | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Other Names | SAM1123-01 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyethylene Terephthalate (PET), Polyester | Insulation Height | 0.230" (5.85mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 1 Position Receptacle, Breakaway Connector Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.656" (16.66mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Breakaway | Applications | - |
