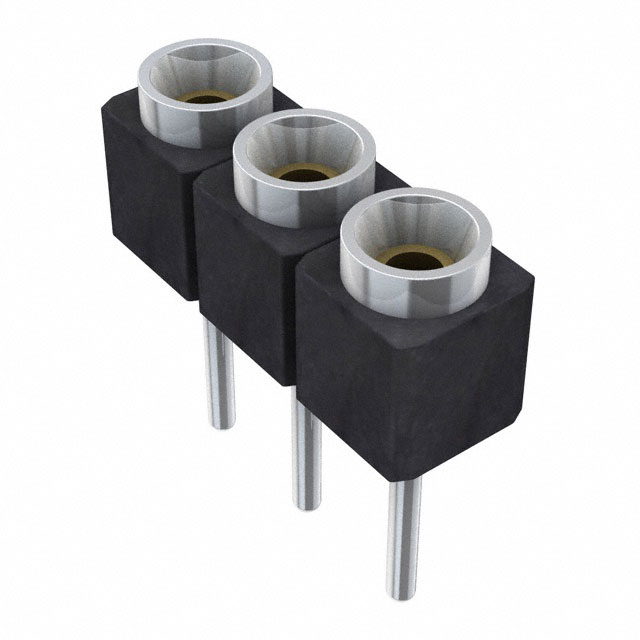

SS-103-T-2-N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS-103-T-2-N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SS-103-T-2-N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SS-103-T-2-N |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 3POS GOLD T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SS-103-T-2-N | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 3POS GOLD T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5199 pcs | Data sheet | SS, SD, ES(S, D), HSS Series DatasheetSD(L), SL, SS, HSS Series Drawing 2SD(L), SL, SS, HSS Series Drawing 1 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | SS | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM1118-03 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.300" (7.62mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
