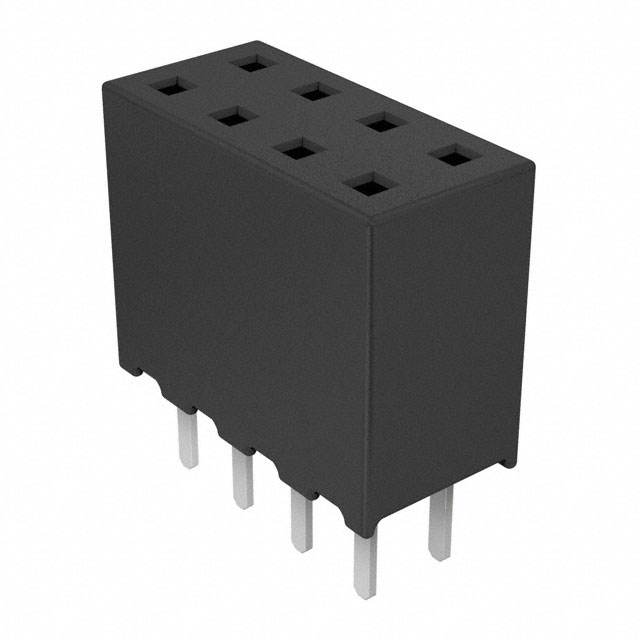

SQW-104-01-F-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SQW-104-01-F-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SQW-104-01-F-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SQW-104-01-F-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM SOCKET STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.555 | $0.461 | $0.341 | $0.273 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.248 | $0.218 | $0.213 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SQW-104-01-F-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM SOCKET STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91713 pcs | Data sheet | SQW Thru Hole FootprintSQW Series DatasheetSQW-1yy-01-yyy-D-VS-yy-yyy DrawingSQW 2-4 Row Thru Hole Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SQW | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | SAM11875 SQW-104-01-F-D-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector Through Hole |
| Current Rating | 3.8A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
