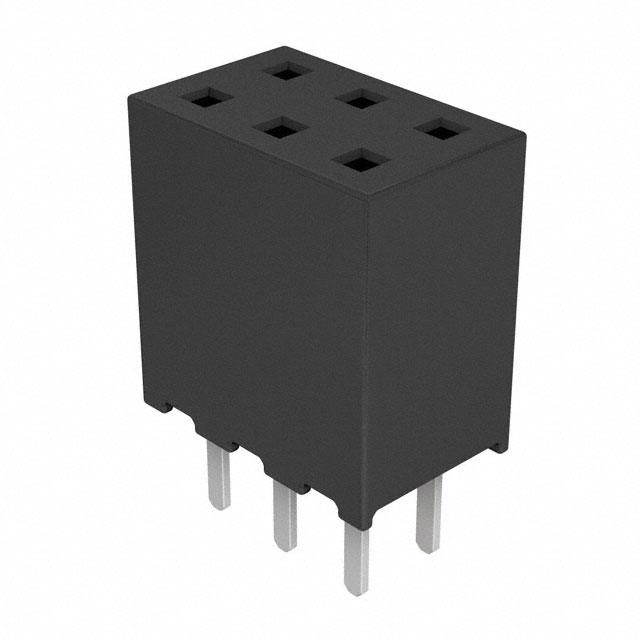

SQW-103-01-F-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SQW-103-01-F-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SQW-103-01-F-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SQW-103-01-F-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM SOCKET STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.534 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SQW-103-01-F-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM SOCKET STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60800 pcs | Data sheet | SQW Thru Hole FootprintSQW Series DatasheetSQW-1yy-01-yyy-D-VS-yy-yyy DrawingSQW 2-4 Row Thru Hole Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SQW | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.250" (6.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Receptacle Connector Through Hole | Current Rating | 3.8A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
