SQT-103-01-L-D-RA

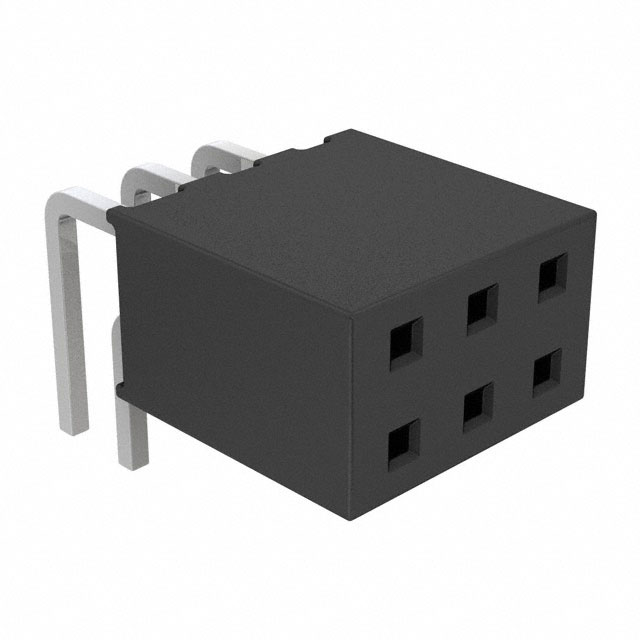

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SQT-103-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SQT-103-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SQT-103-01-L-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 2MM 6POS DL GOLD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.69 | $1.466 | $1.241 | $0.987 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.804 | $0.733 | $0.705 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SQT-103-01-L-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 2MM 6POS DL GOLD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52591 pcs | Data sheet | SQT Series DatasheetSQT Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 450VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | SQT | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | SAM1246-03 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.157" (4.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Current Rating | 5.1A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
