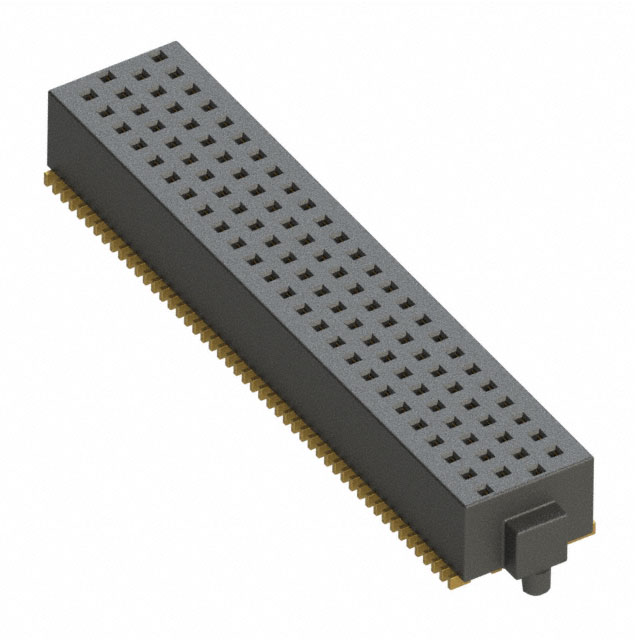

SOLC-125-02-S-Q-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SOLC-125-02-S-Q-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SOLC-125-02-S-Q-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SOLC-125-02-S-Q-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .05" 100POS GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 112 pcs | 512 pcs | |
|---|---|---|---|---|---|
| $4.71 | $4.553 | $4.082 | $3.925 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SOLC-125-02-S-Q-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .05" 100POS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9746 pcs | Data sheet | SOLC-1yy-yy-yyy-Q-yy DrawingSOLC Series DatasheetSOLC Surface Mount Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | FOURRAY™ SOLC | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM12876 SOLC-125-02-S-Q-A-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.160" (4.06mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 100 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 2.4A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
