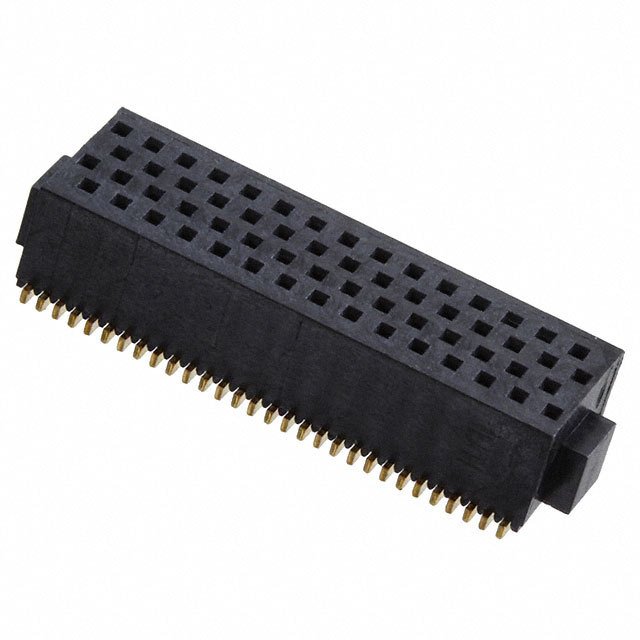

SOLC-115-02-S-Q-P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SOLC-115-02-S-Q-P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SOLC-115-02-S-Q-P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SOLC-115-02-S-Q-P |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | QUAD ROW SMT SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 26 pcs | 104 pcs | 520 pcs | 1014 pcs |
|---|---|---|---|---|---|
| $4.113 | $3.762 | $3.387 | $3.085 | $2.964 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SOLC-115-02-S-Q-P | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | QUAD ROW SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13252 pcs | Data sheet | SOLC-1yy-yy-yyy-Q-yy DrawingSOLC Series DatasheetSOLC Surface Mount Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | FOURRAY™ SOLC | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM9140 SOLC-115-02-S-Q-P-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.160" (4.06mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 60 Position Receptacle Connector Surface Mount | Current Rating | 2.4A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
