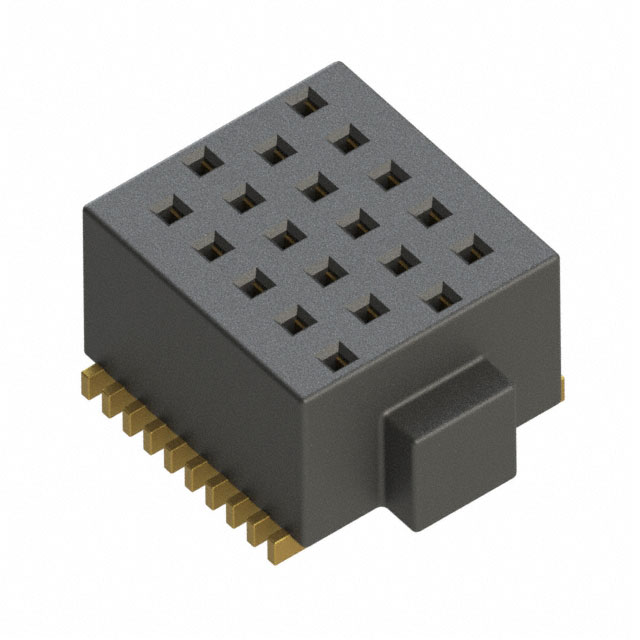

SOLC-105-02-S-Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SOLC-105-02-S-Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SOLC-105-02-S-Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SOLC-105-02-S-Q |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .05" 5X4POS GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.389 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SOLC-105-02-S-Q | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .05" 5X4POS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10666 pcs | Data sheet | SOLC-1yy-yy-yyy-Q-yy DrawingSOLC Series DatasheetSOLC Surface Mount Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | FOURRAY™ SOLC | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM8490 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.160" (4.06mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 2.4A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
