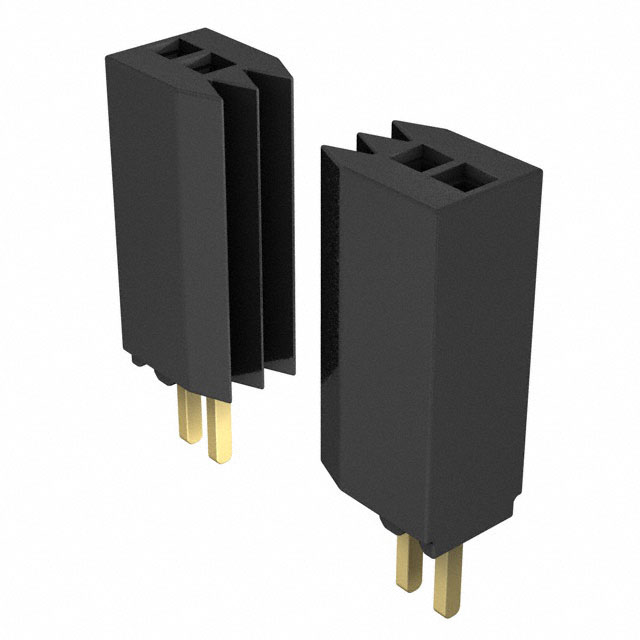

SMS-120-01-G-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS-120-01-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS-120-01-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS-120-01-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 MICRO STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 110 pcs | ||
|---|---|---|---|---|---|
| $1.245 | $1.052 | $0.813 | |||
| 506 pcs | 1012 pcs | 5016 pcs | |||
| $0.669 | $0.622 | $0.586 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMS-120-01-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 MICRO STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59058 pcs | Data sheet | SLM, SMS Series DatasheetSMS Single Row Thru Hole FootprintSMS Single Row Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | SMS | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM9969 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector Through Hole |
| Current Rating | 5A per Contact | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
