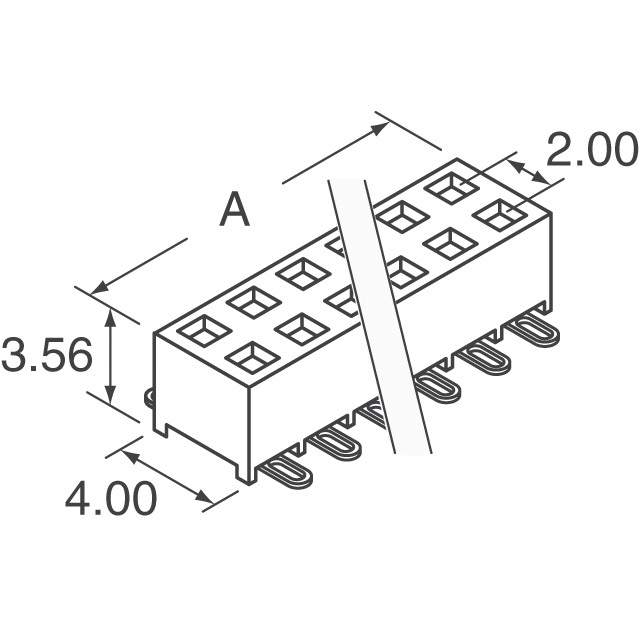

SMM-110-02-S-D-K-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMM-110-02-S-D-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMM-110-02-S-D-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMM-110-02-S-D-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM SOCKET STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.746 | $2.63 | $2.173 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMM-110-02-S-D-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM SOCKET STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16613 pcs | Data sheet | SMM-1yy-yy-yy-D-yy-y-yy-yy DrawingSMM Double Row SMT FootprintSMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 350VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Tiger Eye™ SMM | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Original-Reel® |
| Other Names | SAM14556DKR | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.140" (3.56mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector Surface Mount |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
