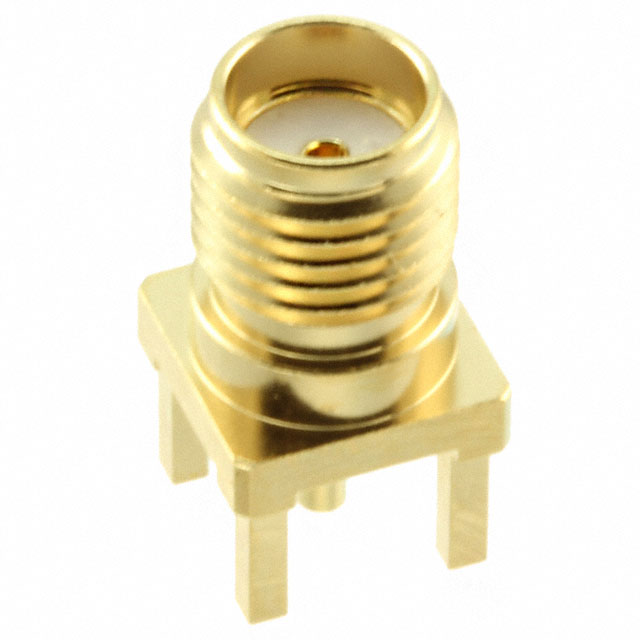

SMA-J-P-H-ST-TH1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMA-J-P-H-ST-TH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMA-J-P-H-ST-TH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMA-J-P-H-ST-TH1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SMA JACK STR 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.744 | $1.673 | $1.533 | $1.463 | $1.394 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.22 | $1.185 | $1.01 | $0.941 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMA-J-P-H-ST-TH1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SMA JACK STR 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32279 pcs | Data sheet | SMA-J-P-x-ST-TH1 DrawingSMA(-W) Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Tray | Other Names | SAM8971 SMA-J-P-H-ST-TH1-ND |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 20GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
