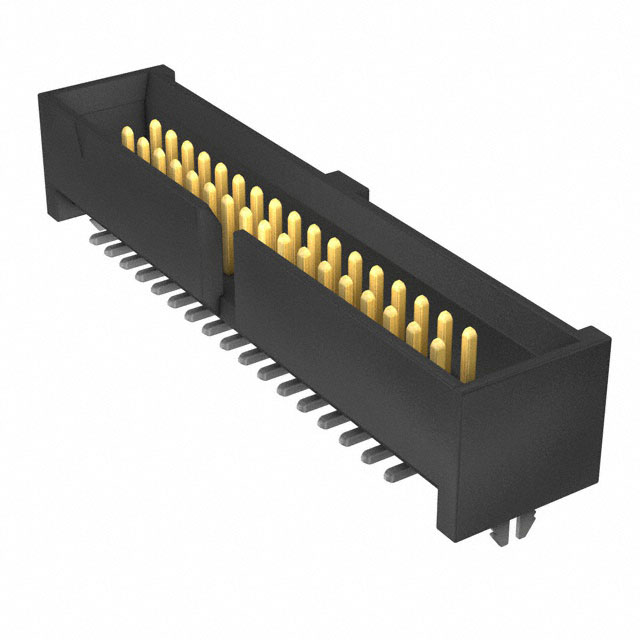

SHF-117-01-L-D-SM-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SHF-117-01-L-D-SM-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SHF-117-01-L-D-SM-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SHF-117-01-L-D-SM-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUDED HEADER HDR 34 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.976 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SHF-117-01-L-D-SM-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUDED HEADER HDR 34 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16707 pcs | Data sheet | SHF Series DrawingSHF,ESHF,EHF,ECF Series DatasheetSHF Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | Q8289025XT | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.210" (5.33mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 34 position 0.050" (1.27mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
