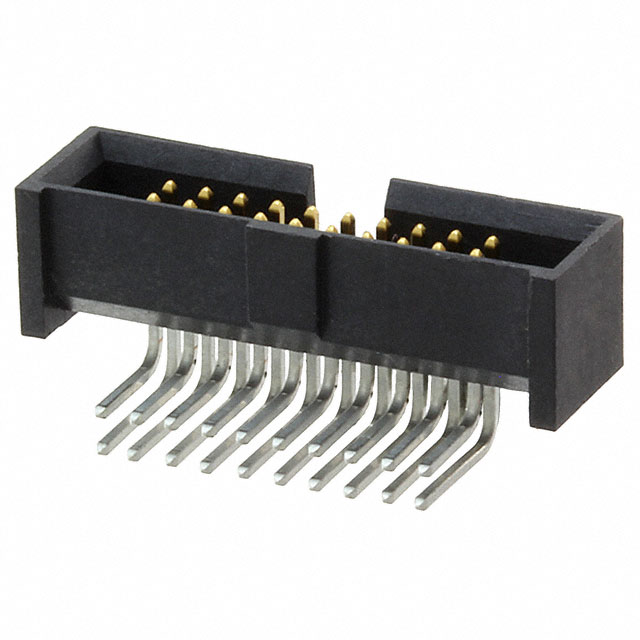

SHF-110-01-L-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SHF-110-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SHF-110-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SHF-110-01-L-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 X .050 SHROUDED TERMINAL ST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.359 | $1.196 | $1.087 | |||
| 510 pcs | 1020 pcs | 5010 pcs | |||
| $0.924 | $0.788 | $0.707 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SHF-110-01-L-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 SHROUDED TERMINAL ST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48593 pcs | Data sheet | SHF Series DrawingSHF,ESHF,EHF,ECF Series DatasheetSHF Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM9131 SHF-110-01-L-D-RA-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.085" (2.16mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
