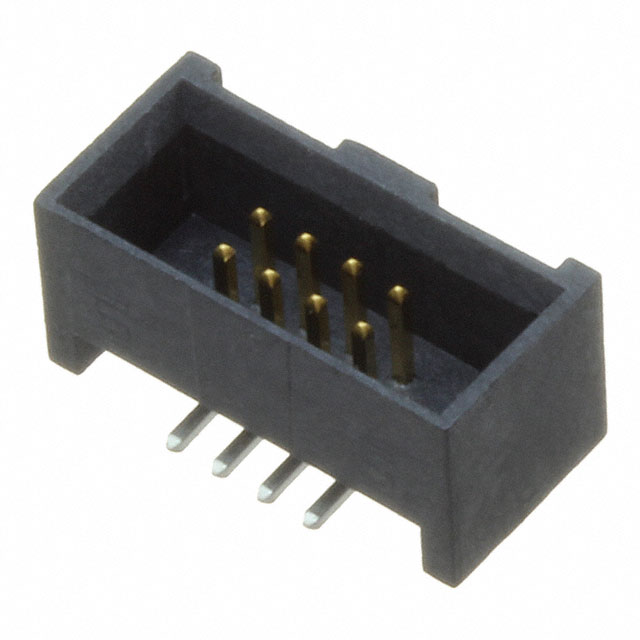

SHF-104-01-L-D-SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SHF-104-01-L-D-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SHF-104-01-L-D-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SHF-104-01-L-D-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 X .050 SHROUDED TERMINAL ST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.043 | $1.001 | $0.834 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.709 | $0.605 | $0.542 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SHF-104-01-L-D-SM | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 SHROUDED TERMINAL ST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65633 pcs | Data sheet | SHF Series DrawingSHF,ESHF,EHF,ECF Series DatasheetSHF Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM11768 SHF-104-01-L-D-SM-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.210" (5.33mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 8 position 0.050" (1.27mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
