SFML-140-T2-S-D

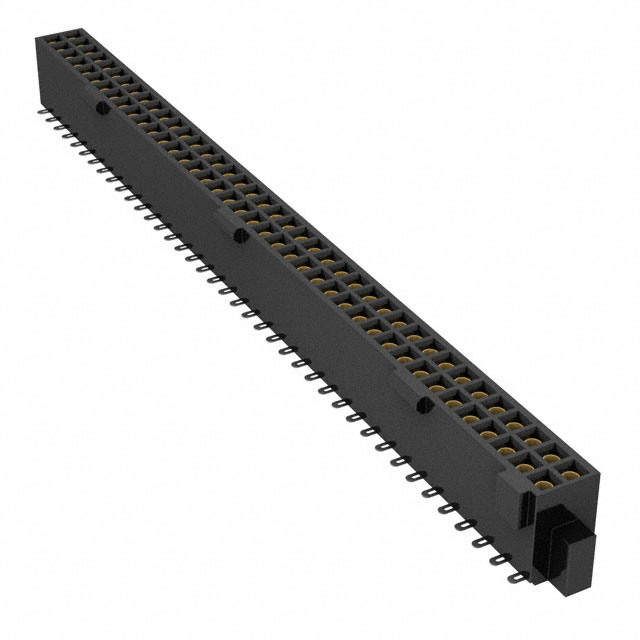

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFML-140-T2-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFML-140-T2-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFML-140-T2-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .05" 80POS DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.792 | $3.571 | $3.124 | $2.845 | $2.734 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SFML-140-T2-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .05" 80POS DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12007 pcs | Data sheet | SFML Series DrawingSFML Surface Mount FootprintSFM(L) Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Tiger Eye™ SFML | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM8254 SFML140T2SD |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.185" (4.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | 80 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 3.2A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
