SFML-140-01-S-D

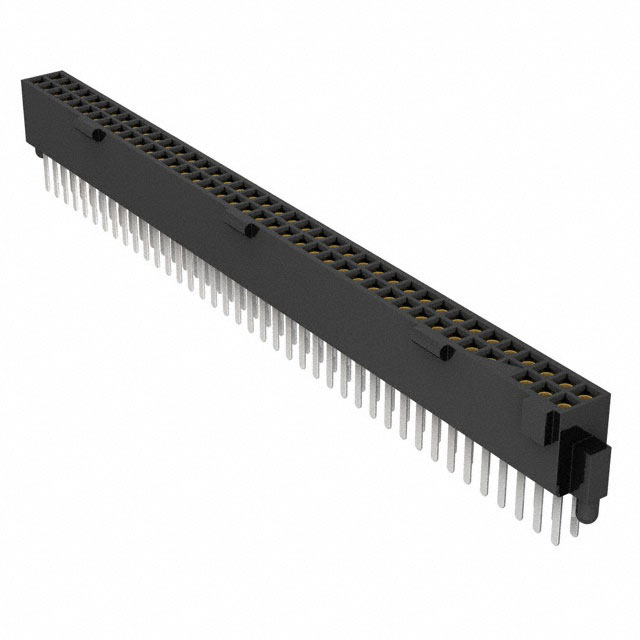

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFML-140-01-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFML-140-01-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFML-140-01-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RECEPT 80POS 1.27MM GLD PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.564 | $4.296 | $3.759 | $3.423 | $3.289 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SFML-140-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECEPT 80POS 1.27MM GLD PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10169 pcs | Data sheet | SFML Series DrawingSFM(x)/SFC Thru Hole Footprint (Double)SFM(L) Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Tiger Eye™ SFML | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM8716 SFML14001SD |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.180" (4.57mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 80 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
