SFML-105-T1-S-D

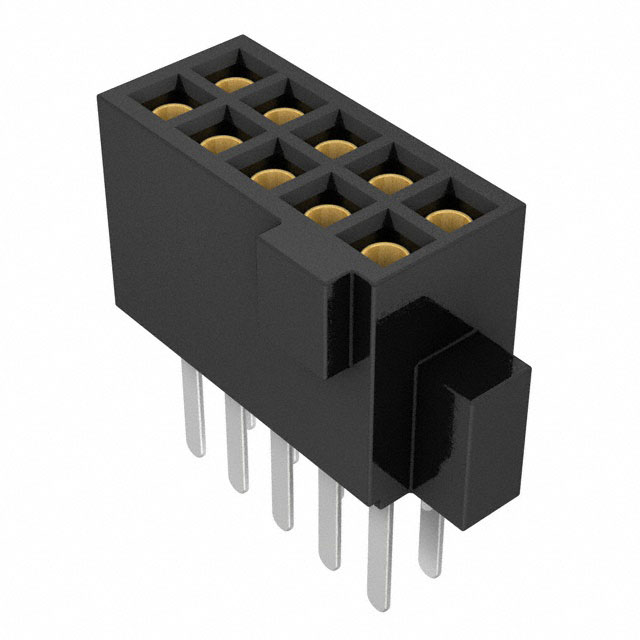

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFML-105-T1-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFML-105-T1-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFML-105-T1-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HDR SOCKET 1.27MM 5 POS T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.018 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SFML-105-T1-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HDR SOCKET 1.27MM 5 POS T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37958 pcs | Data sheet | SFML Series DrawingSFM(x)/SFC Thru Hole Footprint (Double)SFM(L) Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Tiger Eye™ SFML | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | Q5400716 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.180" (4.57mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
