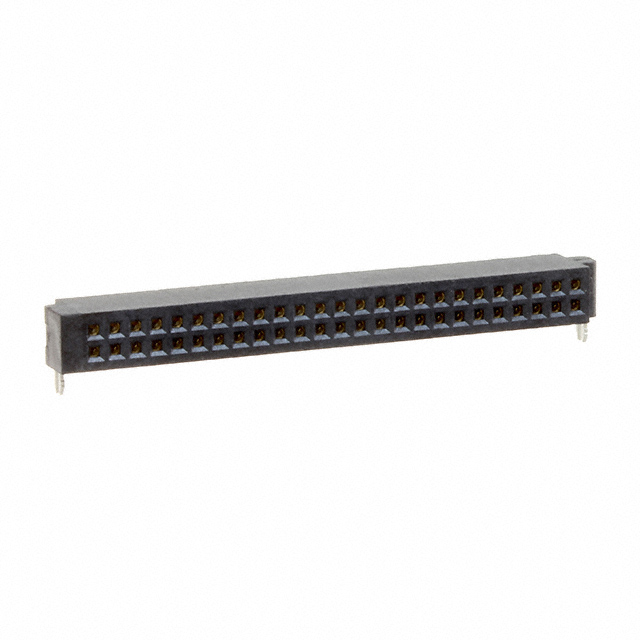

SFMH-125-02-L-D-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFMH-125-02-L-D-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFMH-125-02-L-D-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFMH-125-02-L-D-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RECEPT 50POS .50" SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 112 pcs | 512 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $3.458 | $3.255 | $2.848 | $2.594 | $2.492 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SFMH-125-02-L-D-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECEPT 50POS .50" SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13861 pcs | Data sheet | SFMH Horizontal SMT FootprintSFMH DrawingFSH, SFMH Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Tiger Eye™ SFMH | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM10706 SFMH-125-02-L-D-LC-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.135" (3.43mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | 50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
