SFM-135-02-S-D-LC

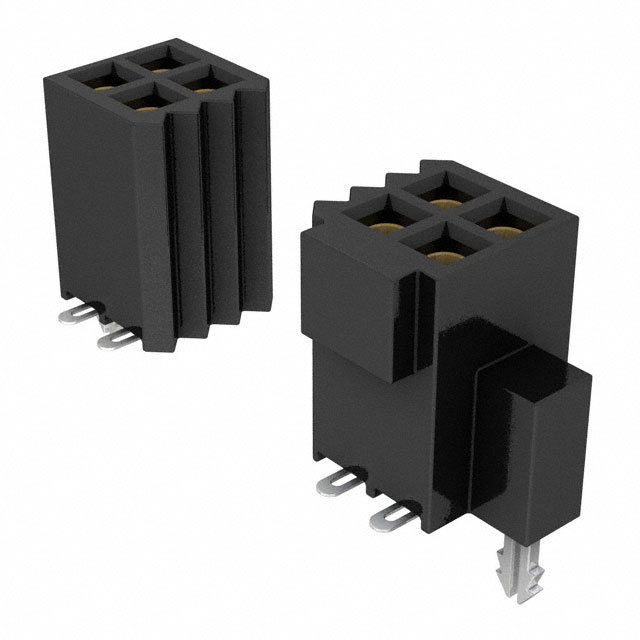

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFM-135-02-S-D-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFM-135-02-S-D-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFM-135-02-S-D-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050" X .050 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $4.099 | $3.858 | $3.376 | $3.074 | $2.954 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SFM-135-02-S-D-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050" X .050 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12523 pcs | Data sheet | SFM(L) Series DatasheetSFM Series Drawing, Double Row |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Tiger Eye™ SFM | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | SAM9896 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 70 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.185" (4.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | 70 Position Receptacle Connector Surface Mount |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
