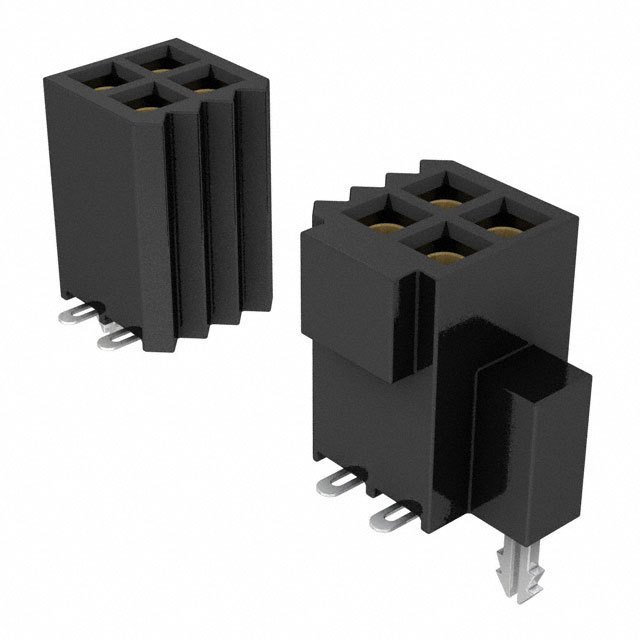

SFC-120-T2-F-D-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SFC-120-T2-F-D-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SFC-120-T2-F-D-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SFC-120-T2-F-D-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CON SOCKET 40 POS 1.27MM ST SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.024 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SFC-120-T2-F-D-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CON SOCKET 40 POS 1.27MM ST SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31751 pcs | Data sheet | SFC Series DatasheetSFC-1xx-xx-xx-D-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 350VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Tiger Eye™ SFC | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | Q5741112BB | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.180" (4.57mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 3.1A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
