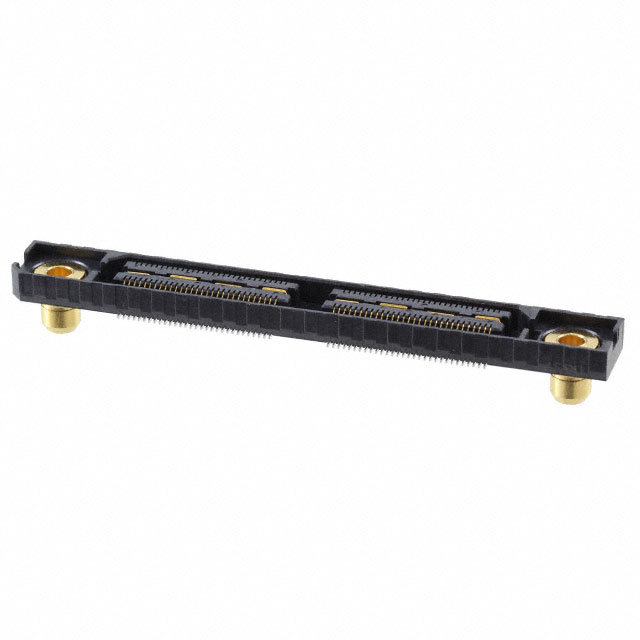

QSH-060-01-L-D-A-RT1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH-060-01-L-D-A-RT1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH-060-01-L-D-A-RT1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH-060-01-L-D-A-RT1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RECPT 120POS 0.5MM SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.881 | $4.718 | $4.555 | $4.393 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.23 | $4.149 | $4.067 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH-060-01-L-D-A-RT1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RECPT 120POS 0.5MM SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8168 pcs | Data sheet | QSH-zzz-01-z-D-RA-zz DrawingQSH-RA DatasheetQSH-zzz-01-z-D-RA-zzz Footprint |
| Category | Connectors, Interconnects | Series | Q Strip® QSH |
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | QSH-060-01-L-D-A-RT1-ND SAM10653 |
Number of Rows | 2 |
| Number of Positions | 120 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.128" (3.25mm) | Features | Board Guide, Ground Bus (Plane), Mounting Flange |
| Detailed Description | 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
