QSH-060-01-F-D-A-K-TR

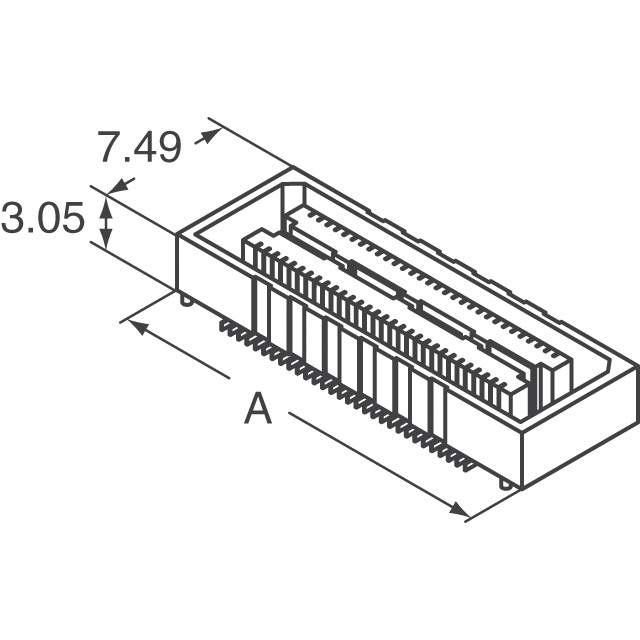

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH-060-01-F-D-A-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH-060-01-F-D-A-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH-060-01-F-D-A-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .5MM DOUBLE ROW MI SOCKET ASSEMB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | ||
|---|---|---|---|---|---|
| $2.267 | $2.18 | $2.136 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH-060-01-F-D-A-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .5MM DOUBLE ROW MI SOCKET ASSEMB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18180 pcs | Data sheet | QSH Series DatasheetQSH-yyy-01-y-D-yyy DrawingQSH-yyy-01-y-D-yyy Footprint |
| Category | Connectors, Interconnects | Series | Q Strip® QSH |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | QSH-060-01-F-D-A-K-TR-ND SAM13217TR |
Number of Rows | 2 |
| Number of Positions | 120 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.128" (3.25mm) | Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Detailed Description | 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
