QSH-020-01-H-D-DP-A

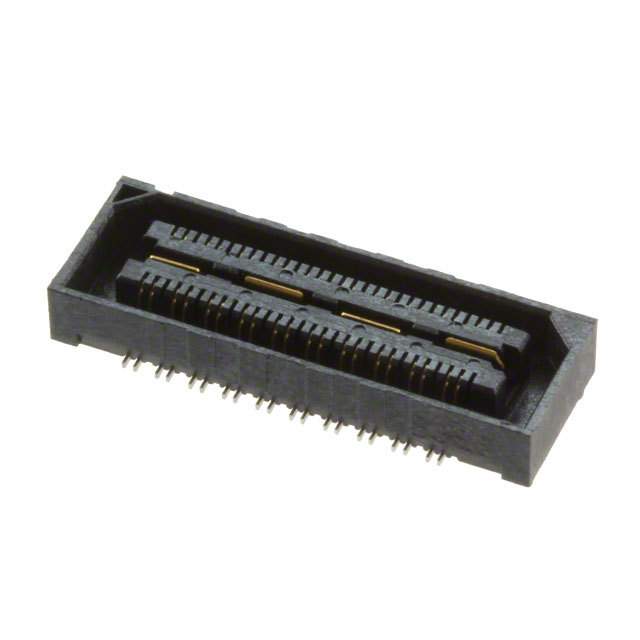

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSH-020-01-H-D-DP-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSH-020-01-H-D-DP-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSH-020-01-H-D-DP-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .5MM DOUBLE ROW MI SOCKET ASSEMB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.323 | $4.071 | $3.956 | $3.689 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.562 | $3.307 | $3.244 | $3.117 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSH-020-01-H-D-DP-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .5MM DOUBLE ROW MI SOCKET ASSEMB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12415 pcs | Data sheet | QSH Series DatasheetQSH-yyy-yy-y-D-DP-yyy DrawingQSH-DP Surface Mount Footprint |
| Category | Connectors, Interconnects | Series | Q Strip® QSH |
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | QSH-020-01-H-D-DP-A-ND SAM11595 |
Number of Rows | 2 |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.128" (3.25mm) | Features | Board Guide, Ground Bus (Plane) |
| Detailed Description | 40 Position Connector Differential Pair Array, Female Surface Mount Gold | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Differential Pair Array, Female |
