QSE-014-01-F-D-DP-A

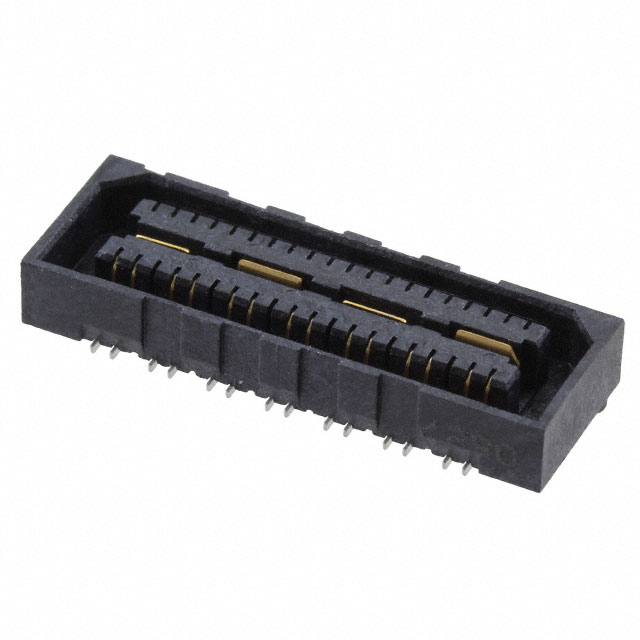

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSE-014-01-F-D-DP-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QSE-014-01-F-D-DP-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QSE-014-01-F-D-DP-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT HI-SPEED DUAL 28POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 96 pcs | 192 pcs |
|---|---|---|---|---|---|
| $2.133 | $1.948 | $1.855 | $1.669 | $1.484 | |
| 288 pcs | 576 pcs | 1056 pcs | 2592 pcs | ||
| $1.345 | $1.252 | $1.183 | $1.136 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | QSE-014-01-F-D-DP-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT HI-SPEED DUAL 28POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32834 pcs | Data sheet | QSE-DP Series DrawingQSE Series DatasheetQSE-DP Surface Mount Footprint |
| Category | Connectors, Interconnects | Series | Q Strip® QSE |
| Pitch | 0.031" (0.80mm) | Packaging | Tube |
| Other Names | QSE-014-01-F-D-DP-A-ND SAM10640 |
Number of Rows | 2 |
| Number of Positions | 28 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.128" (3.25mm) | Features | Board Guide, Ground Bus (Plane) |
| Detailed Description | 28 Position Connector Differential Pair Array, Female Surface Mount Gold | Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Finish | Gold | Connector Type | Differential Pair Array, Female |
