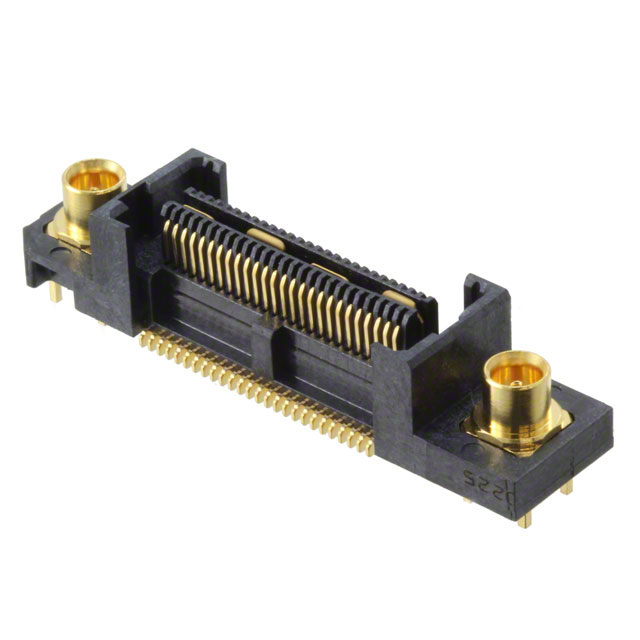

QFS-026-04.25-H-D-RF1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QFS-026-04.25-H-D-RF1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QFS-026-04.25-H-D-RF1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QFS-026-04.25-H-D-RF1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 52POS DUAL .635MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $5.561 | $5.362 | $5.163 | $5.064 | ||
| 120 pcs | 300 pcs | 540 pcs | |||
| $4.965 | $4.865 | $4.766 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QFS-026-04.25-H-D-RF1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 52POS DUAL .635MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6589 pcs | Data sheet | QFS Surface Mount FootprintQFS Series DrawingQFS-PC,QFS-RF Series |
| Category | Connectors, Interconnects | Series | RF Q2™ QFS |
| Pitch | 0.025" (0.64mm) | Packaging | Tray |
| Other Names | QFS-026-01-H-D-RF1 SAM8149 |
Number of Rows | 2 |
| Number of Positions | 54 (52 + 2 RF Jacks) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 10mm, 11mm, 14mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.293" (7.45mm) | Features | Board Guide, Ground Bus (Plane), RF Jacks (2) |
| Detailed Description | 54 (52 + 2 RF Jacks) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
