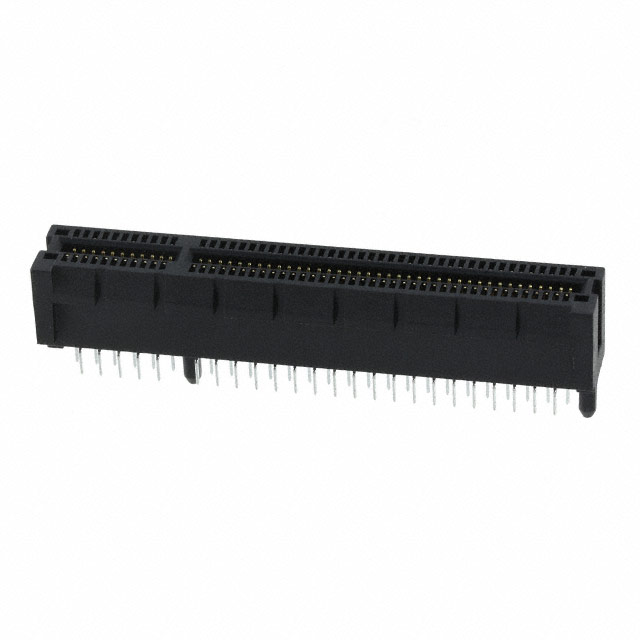

PCIE-098-02-F-D-TH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCIE-098-02-F-D-TH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCIE-098-02-F-D-TH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCIE-098-02-F-D-TH |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | PCI EXPRESS EDGE MOUNT ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.037 | $0.996 | $0.913 | $0.871 | $0.83 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.726 | $0.705 | $0.601 | $0.56 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCIE-098-02-F-D-TH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | PCI EXPRESS EDGE MOUNT ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67363 pcs | Data sheet | PCIE Series CatalogPCIE-zzz-02-z-D-TH Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | PCI Express® (PCIe) | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | SAM9745 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 98 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Color | Black |
| Card Type | PCI Express™ | Card Thickness | 0.062" (1.57mm) |
