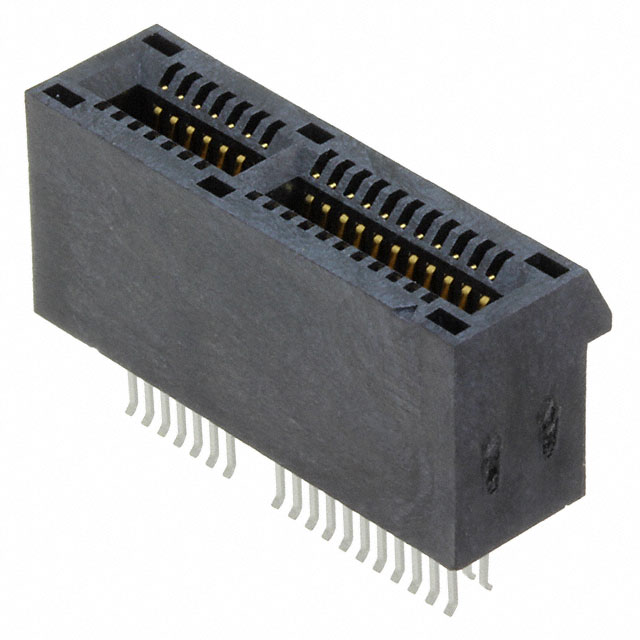

PCIE-036-02-F-D-EMS2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCIE-036-02-F-D-EMS2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCIE-036-02-F-D-EMS2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCIE-036-02-F-D-EMS2 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | PCI EXPRESS EDGE MOUNT ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 44 pcs | 66 pcs | 110 pcs |
|---|---|---|---|---|---|
| $1.233 | $1.182 | $1.084 | $1.034 | $0.985 | |
| 264 pcs | 506 pcs | 1012 pcs | 2508 pcs | ||
| $0.862 | $0.837 | $0.714 | $0.665 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCIE-036-02-F-D-EMS2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | PCI EXPRESS EDGE MOUNT ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48286 pcs | Data sheet | PCIE-yyy-02-y-D-EMSy-yy DrawingPCIE Series Catalog |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | PCI Express® (PCIe) | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | SAM9740 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 36 | Mounting Type | Board Edge, Straddle Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Locking Ramp | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Color | Black |
| Card Type | PCI Express™ | Card Thickness | 0.062" (1.57mm) |
