MUSB-05-F-AB-SM-A

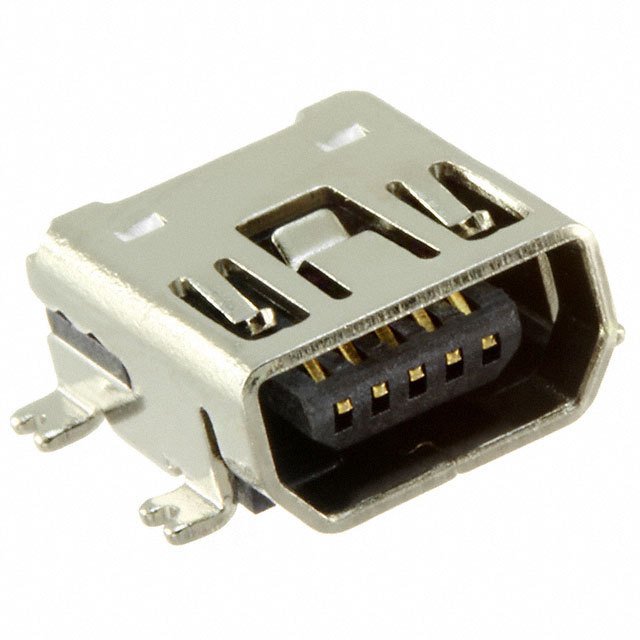

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MUSB-05-F-AB-SM-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MUSB-05-F-AB-SM-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MUSB-05-F-AB-SM-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | MINI USB INTERFACE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.387 | $0.341 | $0.321 | $0.307 | $0.294 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.267 | $0.241 | $0.214 | $0.194 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MUSB-05-F-AB-SM-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | MINI USB INTERFACE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106840 pcs | Data sheet | MUSB-05-x-AB-SM-A-x-xx DrawingMUSB(R), UUSB Series Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 30V |
| Termination | Solder | Specifications | USB 2.0 |
| Shielding | Unshielded | Shell/Shielding Material | Copper Alloy |
| Series | MUSB | Packaging | Tray |
| Other Names | SAM9737 | Operating Temperature | -50°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 5 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 1500 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | Board Guide | Detailed Description | USB - mini AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle |
| Current Rating | - | Contact Finish | Gold |
| Connector Type | USB - mini AB |
