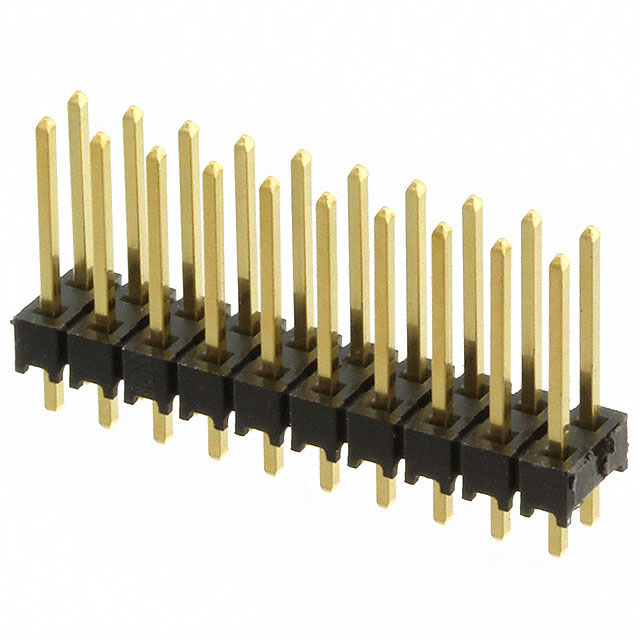

MTSW-110-08-G-D-340
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTSW-110-08-G-D-340 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTSW-110-08-G-D-340 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTSW-110-08-G-D-340 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 20POS .100" TH GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.784 | $0.711 | $0.61 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.508 | $0.435 | $0.386 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTSW-110-08-G-D-340 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 20POS .100" TH GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92964 pcs | Data sheet | MTSW-yyy-yy-y-y-yyyy-yy-yyy Drawing 3MTSW-yyy-yy-y-y-yyyy-yy-yyy Drawing 2MTSW-yyy-yy-y-y-yyyy-yy-yyy Drawing 1MTSW, HMTSW Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Flex Stack, MTSW |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.530" (13.46mm) |
| Other Names | MTSW-110-08-G-D-340-ND Q8262277A SAM9043 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Length - Mating | 0.340" (8.64mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
