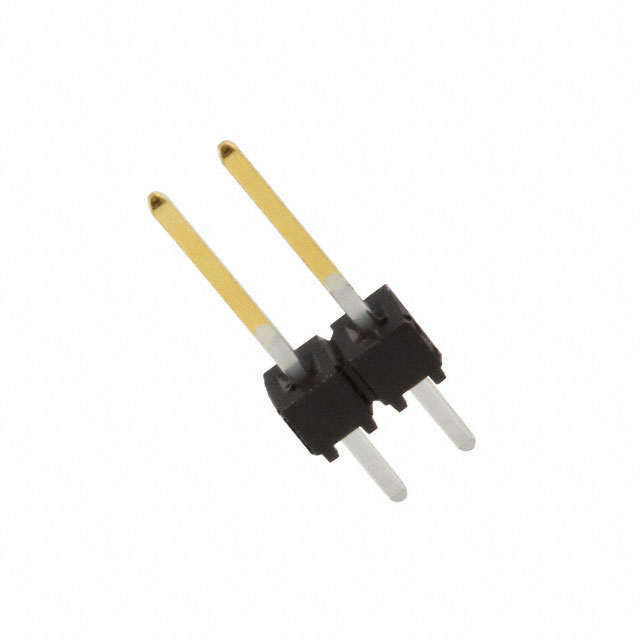

MTSW-102-08-L-S-306
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTSW-102-08-L-S-306 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTSW-102-08-L-S-306 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTSW-102-08-L-S-306 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 2POS .100" TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.093 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTSW-102-08-L-S-306 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 2POS .100" TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 219393 pcs | Data sheet | MTSW-yyy-yy-y-y-yyyy-yy-yyy Drawing 3MTSW-yyy-yy-y-y-yyyy-yy-yyy Drawing 2MTSW-yyy-yy-y-y-yyyy-yy-yyy Drawing 1MTSW, HMTSW Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Flex Stack, MTSW |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.530" (13.46mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.124" (3.15mm) |
| Contact Length - Mating | 0.306" (7.77mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
