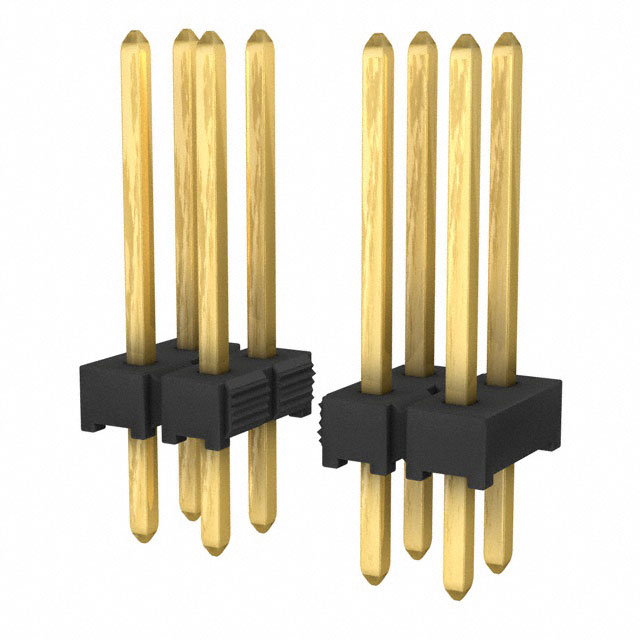

MTMM-110-07-G-D-290
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTMM-110-07-G-D-290 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTMM-110-07-G-D-290 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTMM-110-07-G-D-290 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HEADER GOLD 20POS DUAL ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.189 | $1.14 | $0.95 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.807 | $0.689 | $0.617 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTMM-110-07-G-D-290 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HEADER GOLD 20POS DUAL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56983 pcs | Data sheet | MTMM-1yy-yy-yy-y-yyy-yy-yyy DrawingTMM_TH Double Row FootprintMTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | MTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.456" (11.58mm) |
| Other Names | MTMM-110-07-G-D-290-ND SAM13087 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 20 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | 0.290" (7.37mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
